The Network
Selfnet operates a state-of-the-art network to interconnect the student dormitories in Stuttgart and their residents. All of this is done by students who volunteer alongside their studies.
Upstream

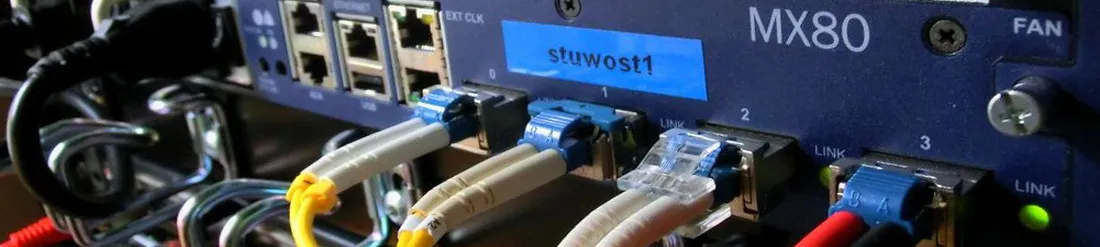

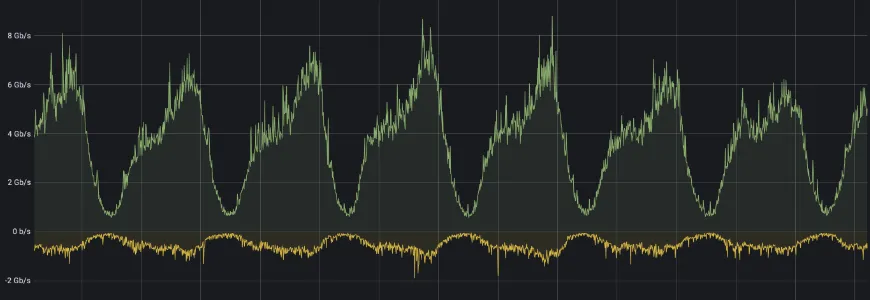

Selfnet has got two 20 Gbps fiber optic uplinks. They connect with two different routers via two different paths to two locations of the States Reasearch and Educational Network (BelWü).
Redundant Network Topology

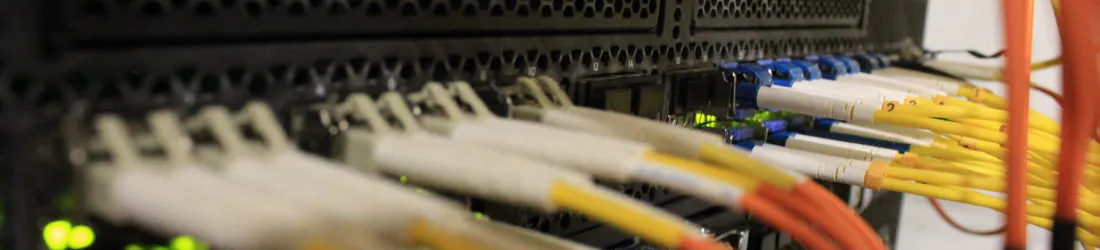

Almost all dormitories are interconnected with 10 and 20 Gbps fiber optic links. A 40 Gbit/s connection was established between the large network nodes in Vaihingen, Möhringen and Stuttgart North and East. The three central server rooms also benefit from these speeds. There are a number of switches in each dormitory, to which all the rooms are connected with 1 Gigabit. For best possible redundancy, the switches are interconnected in a mesh. The topology has grown pretty complex, so we stopped drawing maps by hand and started using molecule simulation software:
- Simplified view of the Selfnet network: structuremap.selfnet.de
Connected Dormitories
The following dormitories are connected to the Selfnet network:
Campus Stuttgart-Vaihingen
- Allmandring I - IV
- Bauhäussle
- Pfaffenhof I - II
- Straussäcker I - III
- Ökumenisches Zentrum
Stuttgart-Möhringen
- Filderbahnplatz 31-37
Stuttgart City
- Alexanderstraße 146
- Anna-Herrigel-Haus (Wildbader Str. 16)
- Birkenwaldstraße 91 (Currently only 100 MBit/s per user)
- Brückenstraße 23
- Heilmannstraße 3-7
- Heilmannstraße 4a/b
- In der Au 16
- Kernerstr. 2
- Landhausstr. 14
- Max-Kade-Haus (Holzgartenstraße 9A)
- Neckarstr. 132
- Rieckestr. 17
- Rosensteinstraße 1-5
- Theodor-Heuss-Heim (Rosenbergstraße 68)
- Wiederholdstraße 2/4
- Wohngruppen Neckarstr. 172 (Boardinghaus Stuttgart)
Ludwigsburg
- Campus Königsallee
- Königsallee 60, 62
- Friedrichstr. 45, 45/1
- OFD Turm Königsallee 58 (renovation work by Studierendenwerk)
- Studentendorf Ludwigsburg
- Montessoriweg 3, 5, 6, 7, 8, 9, 11, 14, 16, 18, 20, 22, 24
- Pestalozziweg 4, 6
- Wohnhaus der Finanzen (Peter-Eichert-Str. 8) (Currently only 100 MBit/s per user)
Esslingen
- Boardinghaus Esslingen (Mettinger Straße 127)
- Fabrikstrasse 3
- Geschwister-Scholl-Straße 15
- Goerdelerweg 58, 60
- Rossneckar I (Mettinger Straße 115, 117)
- Rossneckar II (Mettinger Straße 127, 129)
Monitoring
Some of our monitoring tools are publicly accessible
- status.selfnet.de: Notifications on the status of our network and services
- dashboard.selfnet.de: Dashboard with many different live statistics
- weathermap.selfnet.de: Backbone and uplink usage
In case of outages or network issues, we usually update our Twitter account.
